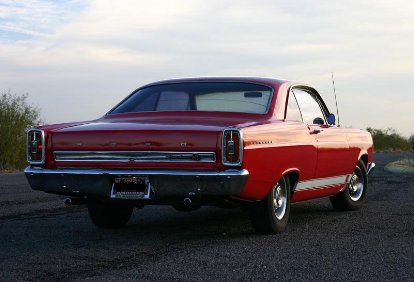

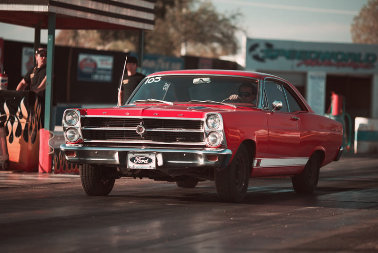

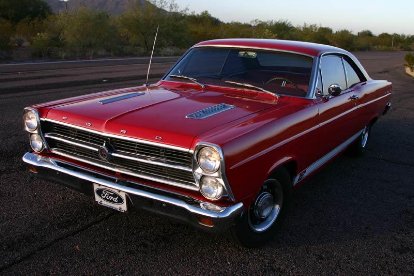

Brian Gray is the proud owner of this beautifully restored 1966 Fairlane GT.
It is in the process of receiving a 468 c.i.d. (427 bored & stroked) Genesis motor from Duffee Motorsports in Pheonix, AZ. The 390 and four speed tranny were removed on October 25th in preparation for the new mill. Duffee Motorsports also installed Baer disc brakes on all four corners. This car has been a daily driver for ten years. The rear is a 9" w/ limited slip. It turned a best of 15.5 seconds in the 1/4 mile with the 390 with quite a bit of wheel hop if he hits the throttle too soon. I see some traction devices in the future for this car. Brian plans to spend the next two years fixing, replacing and refreshing the things time has done to his pride and joy. Bless him Lord.

Here are a couple of Fairlane GT's from the corral of Bob Plowman.

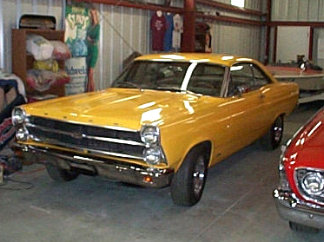

The yellow '67 Fairlane has a 427 MR with 2-715 Holleys; a reproduction 324 degree solid lifter cam and a C-6 with 5 clutch hi/rev; shift kit and still has the column shifter as the car came with no console, but is a GTA.

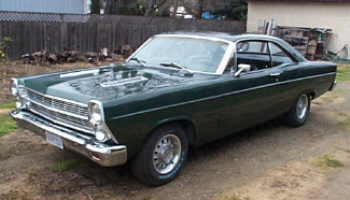

The green 66 GTA has a 390 (the original engine from the yellow Fairlane) with a 750 Holley on a Streetmaster manifold; mild Crane hydraulic cam and a C-6 Trans with 4 clutch hi/rev, shift kit, floor shift w/ console.
Bob does all of his own engine/transmission/body/paint work on his cars and boats.

Interior picture soon coming here

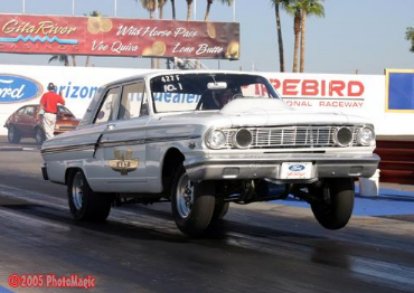

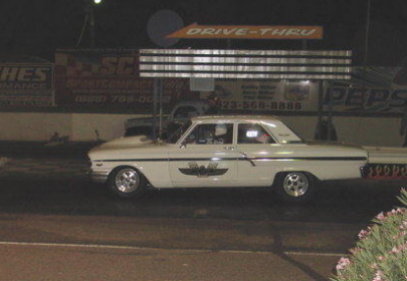

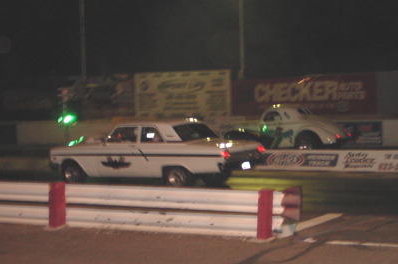

Lou Camp's 1964 Fairlane Thunderbolt*

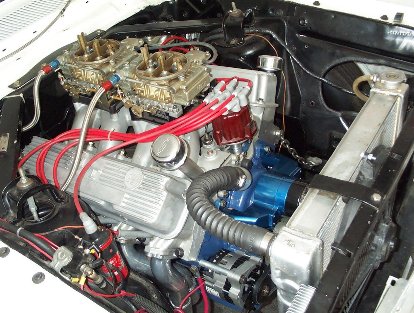

Okay guys, here's the skinny on this beautiful automobile. Body is all steel except for the fiberglass hood & front bumper. Weight w/o driver is 3100#. The business end has a 427 Medium Riser/ Side Oiler Genesis block (4.25 bore) & Edelbrock heads that pump out 704 HP @ 7,000 rpm on the engine dyno. Scatt billet crank for 460 c.i.d.; CompCams roller cam w/ .700+ lift; J&E pistons @ 13.0:1 compression ratio w/ 4.20" bore; 2-780 cfm Holley carbs on a Tunnel wedge intake fed by a 280 gph Barry Grant fuel pump through 1/2" lines. Transmission is a C-6 Automatic w/ A-1 converter; 5500 stall and Art Carr trans brake. Rear is a 9" Ford unit with 4.33:1 gears; spool w/ 39 spline Moser axles Ladder bars w/ Koni double adjustable shocks; 10.5 X 15 tires that are 29.5" High. Performance at Speedworld is:

60' 1.35 sec.
1/8 mile 6.35 sec @ 110 mph
1/4 mile 9.85 sec @ 136 mph

This beautiful 1964 Fairlane is owned by R. Wayne Jeffers aka "RWJ." It is powered by an all aluminum Shelby block with 496 cubic inch displacement; Ford Perfect heads; Crower billet rods and crank; Crane Nitro cams; 58 mm throttle bodies on an original Ford intake w/ Fast EFI system. Transmission is a Jerico feeding a 4.30:1 nine inch rear with ladder bar suspensionnw/ Team Three wheels and M/T street slicks

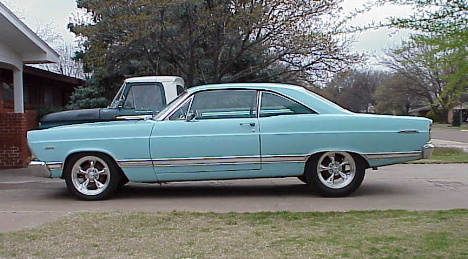

J. Frank aquired this beautiful '67 Fairlane 500 in late 2000 from a man in West Texas. He bought the car new from McAdams Ford in Weatherford, Texas. It was driven for 100,000 miles and then parked in a shed in his back yard since the mid 70's. Originally a 289 2V w/ 3 speed overdrive car, Frank has made several changes to his car. The complete drive train from an S Code 1967 Fairlane GT doner car was installed w/ 9 inch 3.25 open rear, but the top loader was replaced with a Tremac 5 speed. Also added were 390 GT coil; leafs; sway bar; new '67 390 radiator with correct brackets; '67 GT Fairlane factory air cleaner (California version); big block battery tray; 428 PI intake manifold and new acc carpet for the 4 speed trans tunnel; Grenada front disc brakes and 2 1/2" aluminized exhaust with turbo mufflers. The front end is dropped 2" and it rides on 17" American Racing Torq Thrust II"s with B.F.Goodrich T/A radials. A stroked 428 is planned for the future.

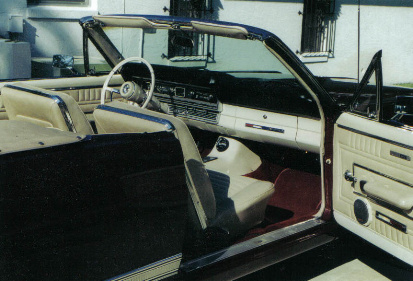

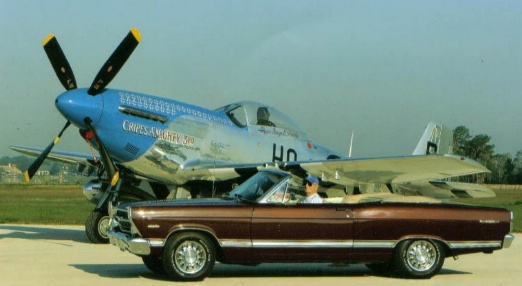

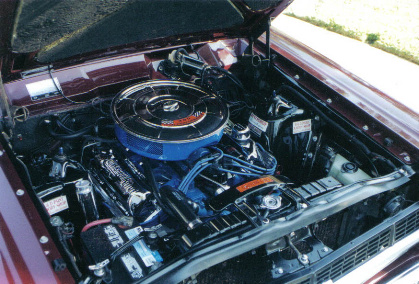

Dave Sauls of Winter Springs, FL is the proud owner of this 1967 Fairlane XL Convertible powered by a 390 cubic inch FE.
The Fairlane is a one owner car that was used as a daily driver for about 30 years and the odometer reads over 200,000 miles. Everything is pretty much stock except the engine was reconfigured to that of a GT when rebuilt @ 160,000 miles by Bakers Auto Shop Racing Engines. The heads were ported and polished at the same time.

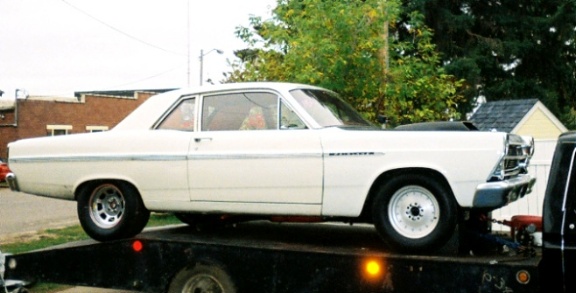

Dean Markuson of Pequot Lakes MN is in the process of setting up his 1967 2 door post Fairlane to run in Nostalgia Super Stock (NSS). It is a rust free Oregon car w/original paint from the windshield back. Engine is a stock steel crank S/O 427 with std. bore and 13+:1 compression ratio. Rods are LeMans w/capscrews. Heads are stock hi-riser w/ matching dual plane 4V intake. Cam is a custom ground Cam Research shaft with .640 lift.bumping shell lifters and Dove rockers. Headers are custom built 'step type' equal length tubes w/ 3 1/2" collectors. Oil is held in a 7 qt. C8ax pan. Ignition is Mallory and carburetion is currently an 850 Holley Double Pumper. Tranny is a Competition/rollerized C-4 w/ reverse manual valve body built by JPT Transmission Stall converter is an 8" w/ 4,000 stall also by JPT. Shifting is done by a Hurst. Rear is a reinforced 9" 'N' case w/ mini spool Daytona pinion support currently running 4.56 gears & Moser 31 spline axles w/ split monoleaf rear springs w/ Cal-tracks. Car has a 6point roll cage, Lexan w/s and fiberglass front fenders from Crites Restoration.

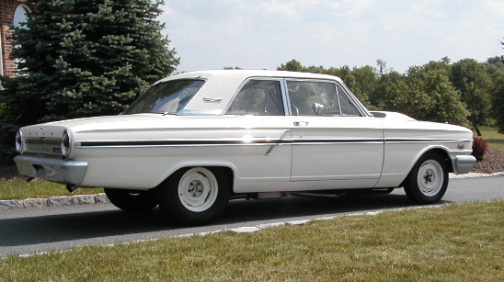

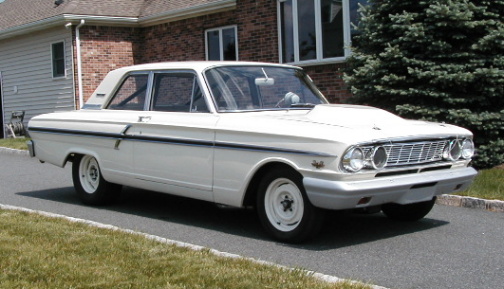

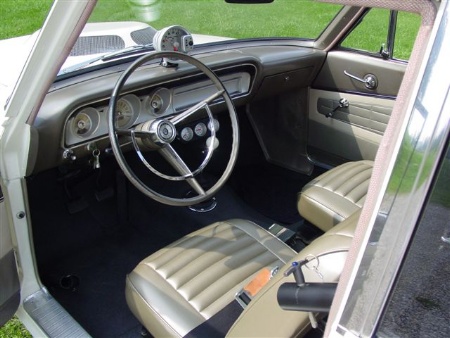

This is Warren Kline's 1964 Fairlane T-Bolt replica. It sports a fiberglass nose; bumpers and trunk lid. To complete the T-Bolt package are A-100 T-Bolt seats and a five point roll bar. The business end has a +.030" 428 with C8AX pan; CJ crank; 10.5:1 compression ratio; Edelbrock heads w/ Stage 2 porting; Dove roller rockers bumped by a solid cam; Blue Thunder 2X4 Medium Riser intake with a pair of 600 Holley carbs all cooled by a Griffin radiator. Exhaust is handled by Crites headers and 3" aluminized exhaust system. Transmission is a four speed sending all that power back to a 4.30 Detroit Locker in a shortened housing with a T-Bolt ladder bar setup and tied frame. It is all stopped with disc brakes.

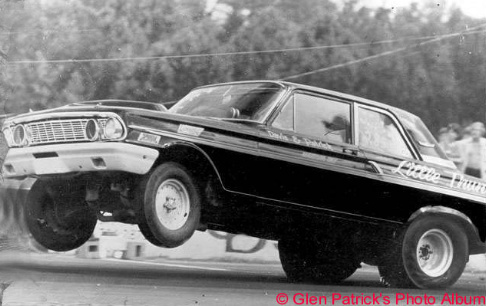

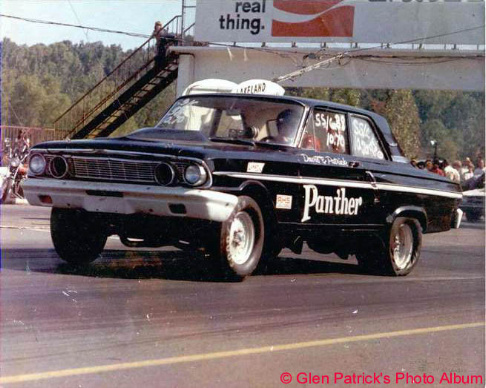

Glen Patrick's first T-Bolt. The pictures were taken at Lakeland Dragway in Memphis, TN in the 1970s. This car was Dick Brannon's car serial #1, or so they have been told. The car was bought out of Michigan for $5,000 in the mid seventies by Bobby Davis and Glen Patrick of Memphis. They sure wish they had it now.

The Lord is my light and my salvation; whom shall I fear? The Lord is the strength of my life; of whom shall I be affraid? Psalm 27:1

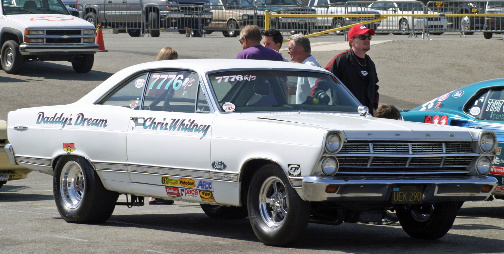

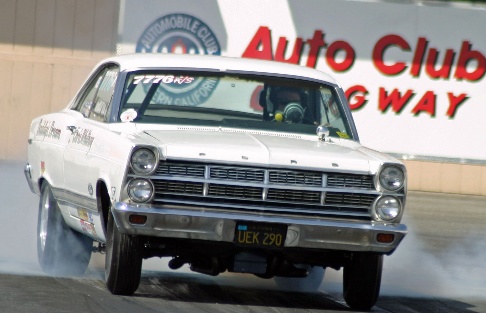

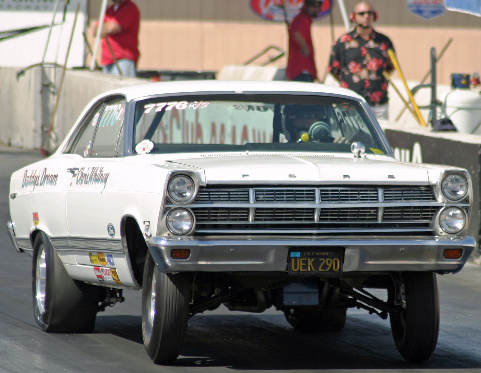

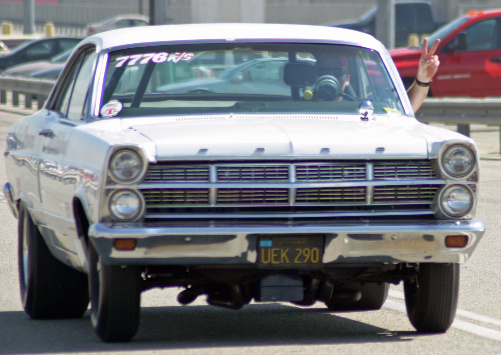

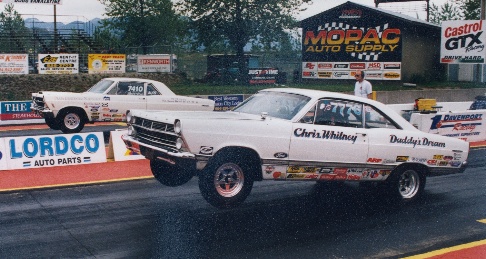

Chris Whitney's 1967 Fairlane 500 "Daddy's Dream"
At age 13 this was his 1st car, it was the car he used to drive to high school. Then one day he decided to go drag racing. It started out as a 390 car and after 8 years of research & development work, it became the record holder in F/Stock at 10.79 sec. @ 122 mph. He held the record from 2000 to 2004 with the 390. It's all steel weighing in at 3500 lbs, Jerico 4 speed 5.14 gears, with the original Holley carb, cam is a Lunati hydraulic w/ .481/.490 lift Car has original stock interior. His best friend Robert Pond talked him into putting a 427 in the car in 1999, so he built up that combination. He set the record in 2001 in B/Stock at 10.31 sec. then reset that record again to 10.16 @ 132 mph. Two years later he also held the record in B/Stock from 2001 - 2005, same car 2 records. He currently races the car in Division 7 Stock Eliminator in Southern California.

Page Design Powered by :

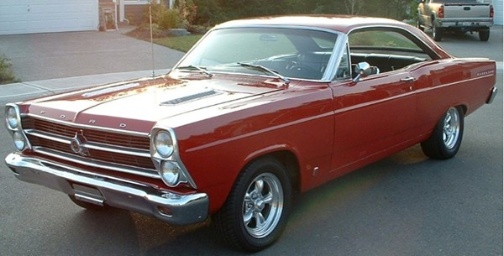

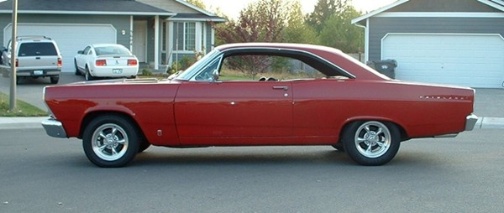

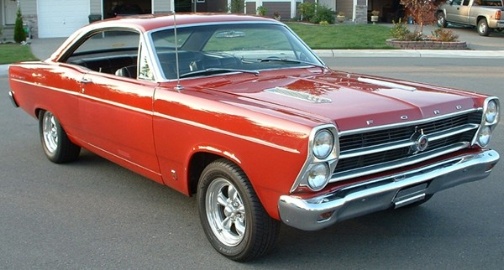

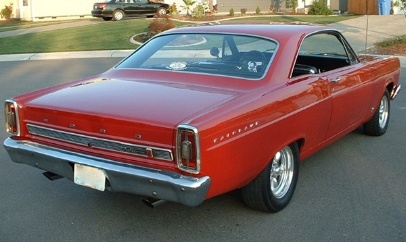

Rick Shuttleworth is the proud owner of this Candyapple red 1966 Fairlane GT powered by a 390 with Performer intake topped by a Holley 750 Double Pumper w/ K&N filter; Cobra Le Mans valve covers; Ford Duraspark dizzy w/ MSD 6AL ignition box; aluminum radiator w/ Edelbrock high flow aluminum water pump; Milodon aluminum fuel filter along with various A/N fittings and stainless steel braided lines. Tranny is a wide ratio top loader four speed feeding a 9" Trac Loc rear w/ 3.25 gears . Wheels are Torq Thrust II's with 15" X 6" rims (front.) & 15" X 7" (rear). Tires are 205/50 front and 235/50 rear. A Hurst shifter; Grant steering wheel and aftermarket gauges round out the otherwise stock interior.
